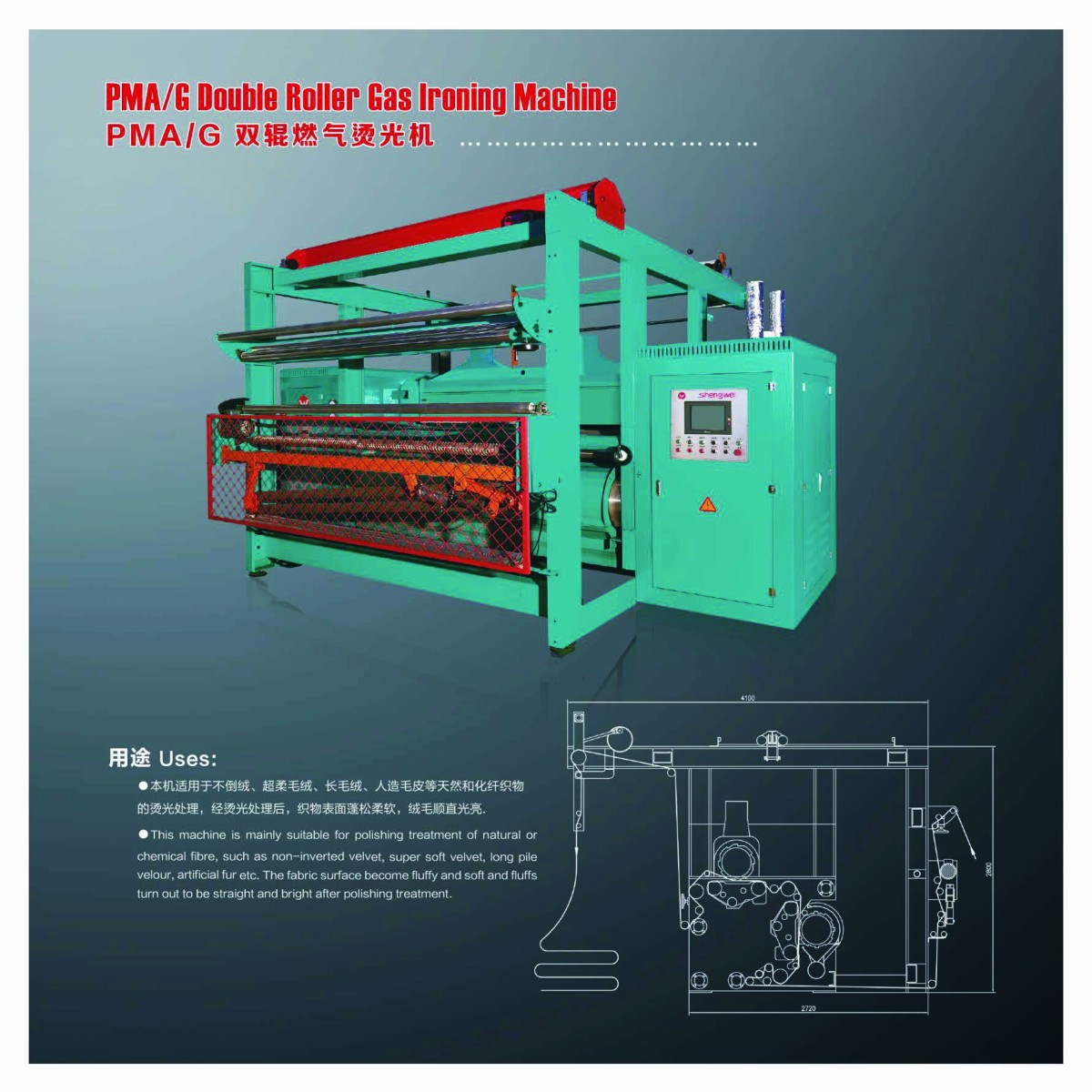

PMA/G Double Rollers Gas Type Polishing Machine

Application:

This machine is suitable for polishing treatment of natural and synthetic fabrics, such as non-pile velvet, super soft plush, long pile plush, artificial fur, etc. After polishing treatment, the fabric surface becomes fluffy and soft, with the pile lying straight, smooth and glossy.

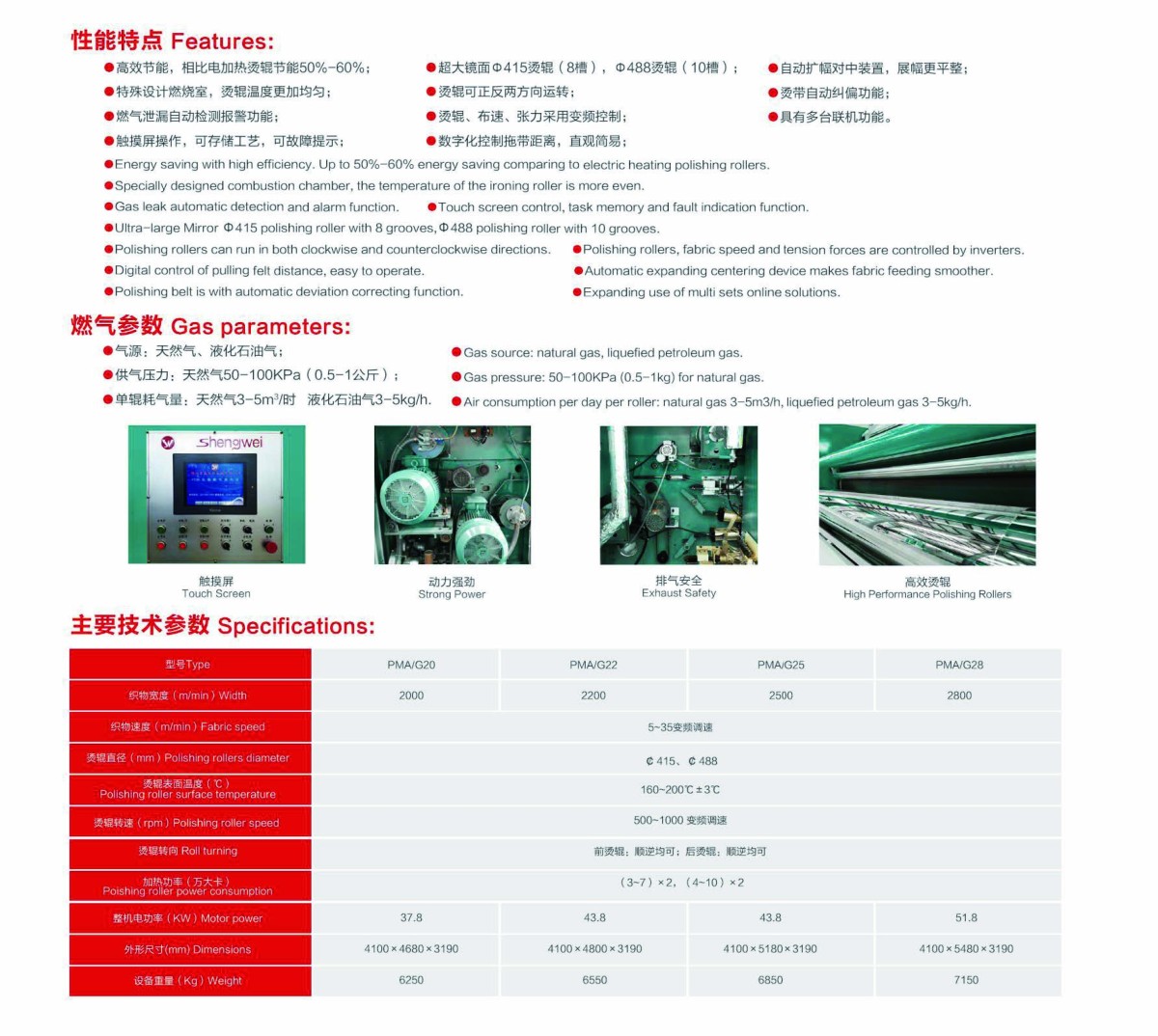

Performance features:

•High efficiency & energy saving: Up to 50%–60% energy savings compared to electric-heated rollers.

•Extra-large mirror-finished rollers:  Φ415 roller (8 grooves), Φ488 roller (10 grooves).

•Automatic fabric expanding and centring device: Provides smoother fabric spreading.

•Specially designed combustion chamber: Ensures more even rollers temperature.

•Polishing rollers can rotate in both forward and reverse directions.

•Automatic polishing belt deviation correction function.

•Automatic gas leak detection and alarm function.

•Polishing roller temperature, fabric speed, and belt tension are controlled by inverters.

•Multi-machine inline function.

•Touchscreen operation, process storage and fault indication function.

•Digitally controlled fabric backing belt advance distance: Intuitive and easy to operate.

Gas parameters:

•Gas source: Natural gas, liquefied petroleum gas (LPG).

•Gas supply pressure: Natural gas, 50-100KPa (0.5-1Kg).

•Gas consumption per roller: Natural gas, 3-5m3/h; LPG, 3-5Kg/h.
